NBT-LED-101 Modern Tapered Garden Street Light

About Ningbo Liaoyuan Lighting Group Co.,ltd

NBT-LED-101

Configuration Data:



Number of LEDs

LED Current

Power Consumpt

Nominal Initial Flux*

30

530mA

50W

5750lm





Application: Park、Square

Main Features:

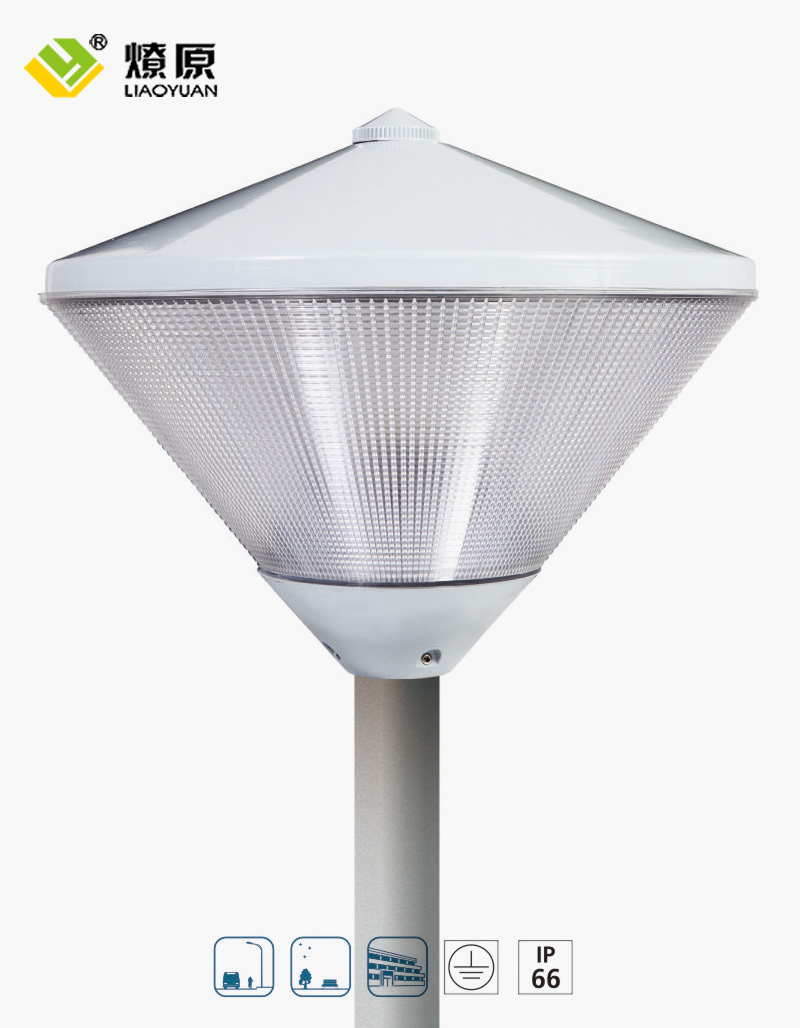

Modern cone shape housing design.

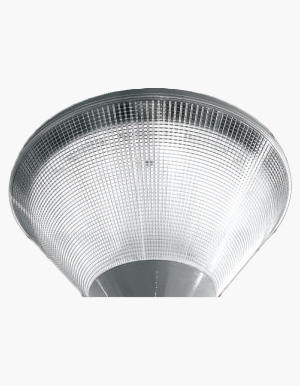

Closure polycarbonate screen.

Integrated surge protection device.



Technical Data:



IP66 protection degree.

Insulation class: Ⅰ

Power supply: 120-277V (50/60Hz)

LED current: 530 mA

Power Factor: >0.95

Working Ambient: -35℃to+45℃

Life Span: >50,000 hrs.

CRI: Ra≥70

CCT: Warm White (3000 - 3700K),

          Neutral White (3700 - 5000K) and Cool White (5000 - 6500K)

Net Weight (Max. Watt): 7kg

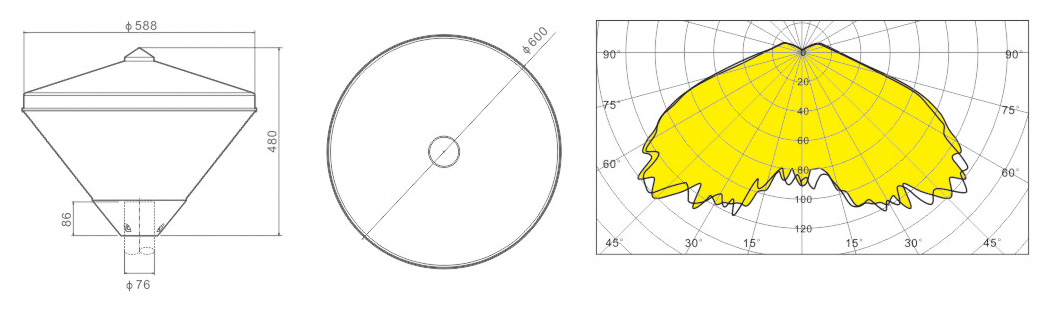

Product Dimensions(mm)/Polar Diagram
