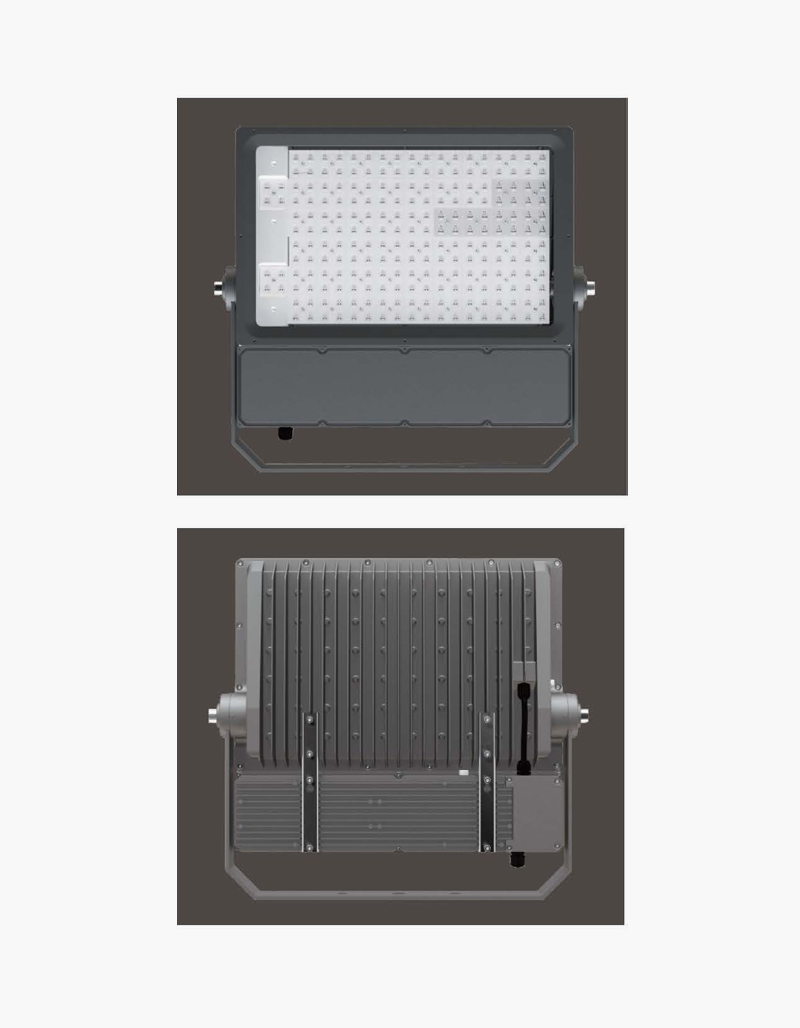

NTG-LED-500

Configuration data:

Application: Suitable for lighting of physical parking lots, industrial zones/factory areas/construction site, billboards, city squares, airport machine buildings, airport aprons, port terminals, port machinery, various stadiums/outdoor venues.

Main features:

Reliable performance

ADC1 grade high specification aluminum material, high die cast aluminum integrated molded body

GZTG-LED-500 500-hour salt spray spray is especially suitable

Strict environment like port terminal operation

Complete lamp IP66 (no glue)/1K08 protection

Extra long life

Light source cavity and electrical box are designed separately, with a 50K hour life design

Standard Philippe Xitanium driver power supply and 10KV anti-wave protection

Easy to maintain

Light weight design of lamps improves installation and maintenance safety

The electrical chamber cover can be opened for easy installation and protection

Technical data:

Body: Aluminum die-cast (ADC1 aluminum material, 500 hours/1000 hours with salt spray)

LxWxH（mm）: 667x600x92

CCT: 3000K/4000K

CRl: min.70

Chromaticity: 7 SDCM

Output power: max.490W

Luminous flux: max.637001m

Input Voltage: 220V-240V/50/60hz

Power Factor: >=0.95

Luminaire effliclency: 130 Im/W@4000K

Lile Time: Lumen maintenance at 70%lifte of 50000h

Protection code: IP66（No glue ）；IK08

Mounting: Bracket installation

Surge protection: 10KV

Dimming option: 1-10V；Dali

Weight: 20Kg

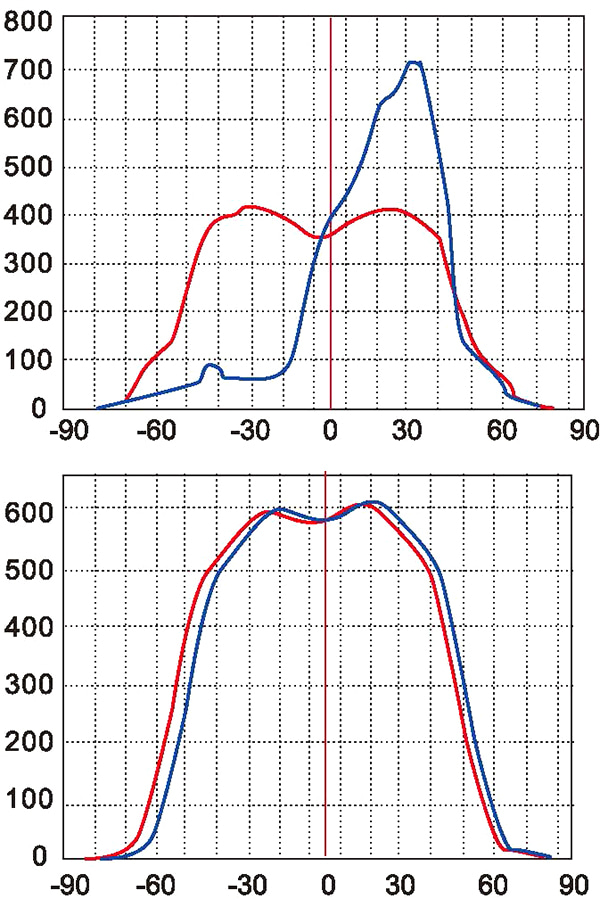

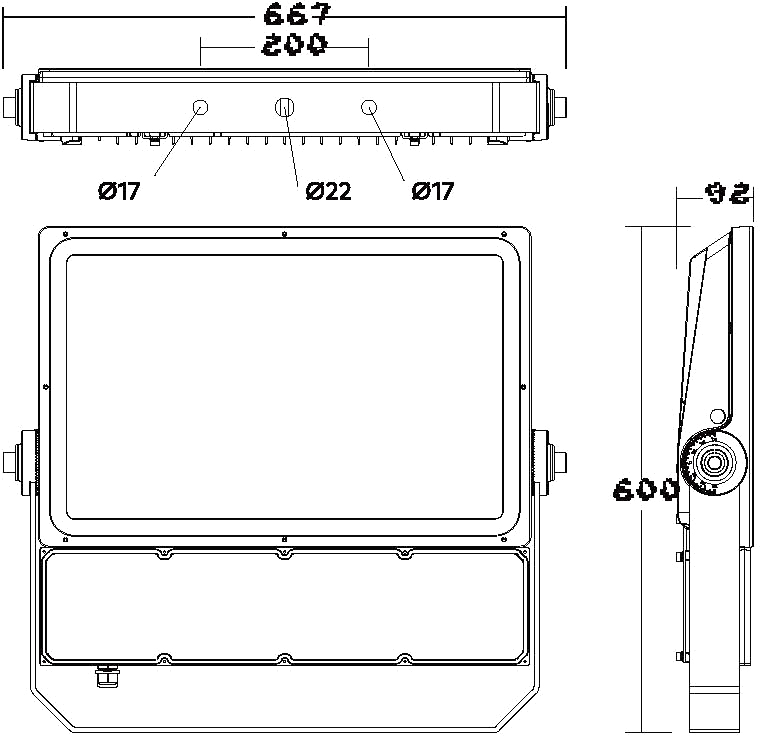

Product Dimensions(mm)	Polar Diagram

Liaoyuan Group is leading NTG-LED-500 company and NTG-LED-500 suppliers in China. Liaoyuan has been certificated of ISO9001 QMS, ISO 14001 EMS and OHSMS, and Liaoyuan also passed a series of authoritative certification including GS, CE, ENEC, UL. You can wholesale NTG-LED-500 easily from us.

• How Long Can I Get The Feedbacks After We Sent The Inquiry?
  We will reply you within 12 hours in working day.
• What Products Can You Offer?
  We mainly produce lamps and poles, lamps can be divided into traditional high pressure sodium lamps and LED lamps, which can be subdivided into five types of lamps, poles, including power pole, power tower, communication rod, communication tower, power structure.
• What Applications Do Your Products Relate To?
  Our products cover a wide range of industries including train & railway, automobile & truck, construction machinery, mining machinery, forklift, agricultural machinery, shipbuilding, petroleum machinery, construction, valve and pumps, electric machine ,hardware, power equipment and so on.
• Can You Do Customized Products?
  Yes,we produce standardized lamp poles and their accessories.
• How About The Capacity Of Your Company?
  We have 5 new automatic lighting assembly line, Million purification patch shop and two poles manufacturing center, including two automatic spraying lines, a lamp aluminum die-casting workshop, a finishing workshop and a solar street lamp assembly workshop, annually producing more than 200,000 tons of special steel, and more than 700,000 sets of lamp.
• How Many Employees Of Your Comany?What About The Technicists?
  We now have more than 500 employees, including 30 engineers and 100 technicians.
• How To Guarantee The Quality Of Your Goods?

  Firstly,we will do the inspection after every process.For the finished products,we will do 100% inspection according to the customers’ requirements and the international standard.

  We then have advanced and complete top-of-the-line inspection equipment in our industry: spectrum analyzer, metallographic microscope, universal tensile testing machine, low temperature impact testing machine, X-ray inspection machine, magnetic particle inspection machine, ultrasonic flaw detector, CMM, Measuring instrument and so on. The above-mentioned equipment can fully guarantee to provide customers with high-precision finished parts of finished products, and at the same time, it can meet the customers' all requirements of physical and chemical properties, non-destructive testing and high-precision geometric size testing.

• What’S The Payment Term?
  When we quote for you,we will confirm with you the way of transaction,FOB,CIF,CNF,etc. For mass production goods, you need to pay 30% deposit before producing and70% balance against copy of documents.The common way is by T/T. L/C is also acceptable.
• How To Deliver The Goods To Us?
  Usually we will ship the goods to you by sea,because we are in Ningbo,and we are only 90 kilometers away from the Ningbo Port,it is very convenient and efficient to ship goods to any other countries. Of course, if your goods are very urgent,the Ningbo Airport and Shanghai Airport are also very nearby.
• Where Are Your Products Mainly Exported To?
  Our products are mainly exported to Brazil, Chile, Germany, Spain, Italy, the United Kingdom, Russia, Australia, the Netherlands, Saudi Arabia, Guinea and other dozens of countries.
• Are You a Direct M,anufacturer or a Trading Company?

  Our company is a brand with a long history of manufacturers, followed by Beijing Rongjing design company, Germany, Germany, Sola Ltd. as a European-oriented marketing and technology services company, we also have our own international trade sector, we produce Since the sale.

• Can You Make Custom Products?

  Yes, we do custom products, we develop and produce products based on drawings or samples provided by our customers. Or design ideas to the customer to solve the overall smart city design

• Where Are Your Products Mainly Exported To?
  Our products are mainly exported to Brazil, Chile, Germany, Spain, Italy, the United Kingdom, Russia, Australia, the Netherlands, Saudi Arabia, Guinea and other dozens of countries.
