NTG-LED-300

 Configuration Data:

Application: It is used for parking lot lighting, industrial zone/factory/construction site lighting, billboard lighting, city square, airport terminal, airport apron, port terminal, port machinery, various courts/outdoor venue lighting.

Main features:

Reliable performance

ADC1 grade high specification aluminum material, high die cast aluminum integrated molded body

GZTG-LED-22500-hour anti-salt spray coating is especially suitable

Strict environment like port terminal operation

Complete lamp IP66 (no glue)/1K08 protection

Extra long life

50K hour life design

Standard Philips Xitanium driver power supply and 10KV surge protection

Easy to maintain

Lightweight design of lamps improves installation and maintenance safety

The electrical chamber cover can be opened for easy installation and maintenance

Technical data:

Body: Aluminum die-cast (ADC1 aluminum material, 500 hours/1000 hours of salt spray resistant)

LxWxH（mm）: 520x520x75

CCT: 3000K/4000K

CRl: min.70

Chromaticity: 7 SDCM

output power: max.300W

Luminous flux: max.36000 Im

Input Voltage: 220V-240V 50/60hz

Power Factor: >=0.95

Luminaire efficiency；120 Im/W@4000K

Life Time: Lumen maintenance at 70%life of 50000h

Protection code: IP66（ No glue ）；IK08

Mounting: Bracket installation

Surge protection: 10KV

Dimming option: 1-10V；Dal

Weight: 11Kg

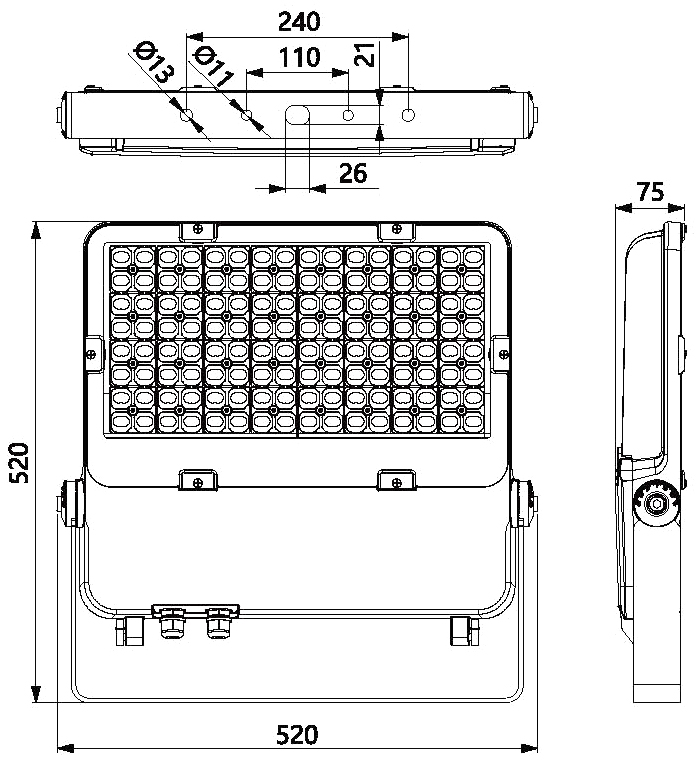

Product Dimensions(mm)	Polar Diagram

Liaoyuan Group is leading NTG-LED-300 company and NTG-LED-300 suppliers in China. Liaoyuan has been certificated of ISO9001 QMS, ISO 14001 EMS and OHSMS, and Liaoyuan also passed a series of authoritative certification including GS, CE, ENEC, UL. You can wholesale NTG-LED-300 easily from us.
