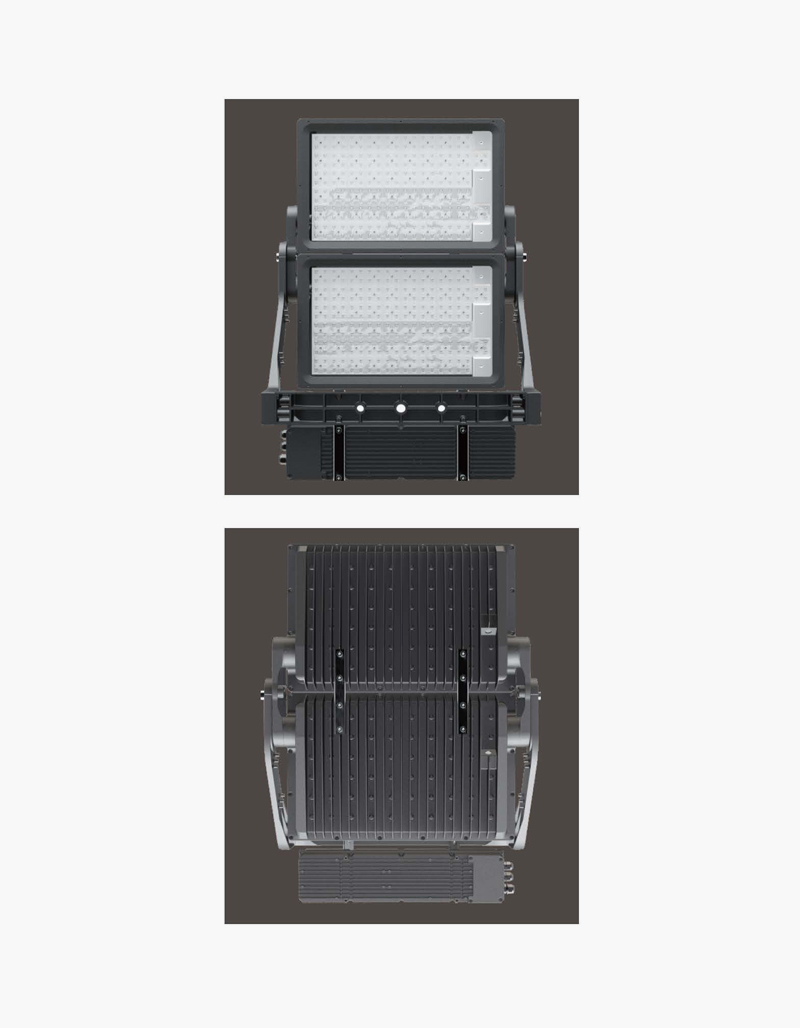

NTG-LED-1000

Configuration data:

Application: Suitable for intersections, port terminals and yards, airport applications, parking lots or port machinery, bridge cranes, gantry cranes, ultra-high warehouse lighting and even stadiums.

Main features:

High-performance LED lamps

Adopt high-quality LED chips, high light efficiency and strong reliability; it has a 10KV surge protection device and a salt spray corrosion resistance of up to 1,000 hours, ensuring that the lamps have no early failure, and the appearance is beautiful and fashionable. The optimized design ensures excellent heat dissipation performance

Professional sports lighting

The color rendering index can reach CRI90 and 80. It adopts 5700K color temperature LED chip and is equipped with low-stroke LED power supply technology. It provides high-quality LED lighting environment rich and professional light distribution design for high-definition live broadcast or transfer of various specifications. It provides 5 professional light distribution according to the lighting needs of various subjects, focusing on sports lighting, and meeting various lighting standards.

Flexible control

1-10V and DALI control interface

Easy to install

Adopt the separation of the electric box and the lamp body, and the installation is flexible; the lamp provides a more flexible installation angle, suitable for all kinds of sports lighting applications

Technical data:

Body: Aluminum die-cast（ ADC1 aluminum material, 500 hours of salt spray resistant ）

CCT/Luminaire efficiency: 5700K: 100lmW（CRI80）；5700K: 70lm/W（CRI90

CRI: 80/90

Output power: 960W

Luminous flux: CRI80: 96KIm；CRI90: 67K Im

Working temperature: -40-45℃（Outdoor）；-40-35℃（室内/Indoor）

Protection code: IP66

Input Voltage: -220-240V/50/60Hz

Power Factor: 0.95

Surge protection: Independent 10KV surge protector

Optical lens: 5 kinds of lenses

Dimensional: 711x770x621

Weight: MAX: Luminaire 24kg，Electrical box 9kg

Life Time: 50K hours/L70 based on /Ta35℃-outdoor; 50K hours/L70 based on Ta25℃-indoor

Dimming option: 1-10V；Dali

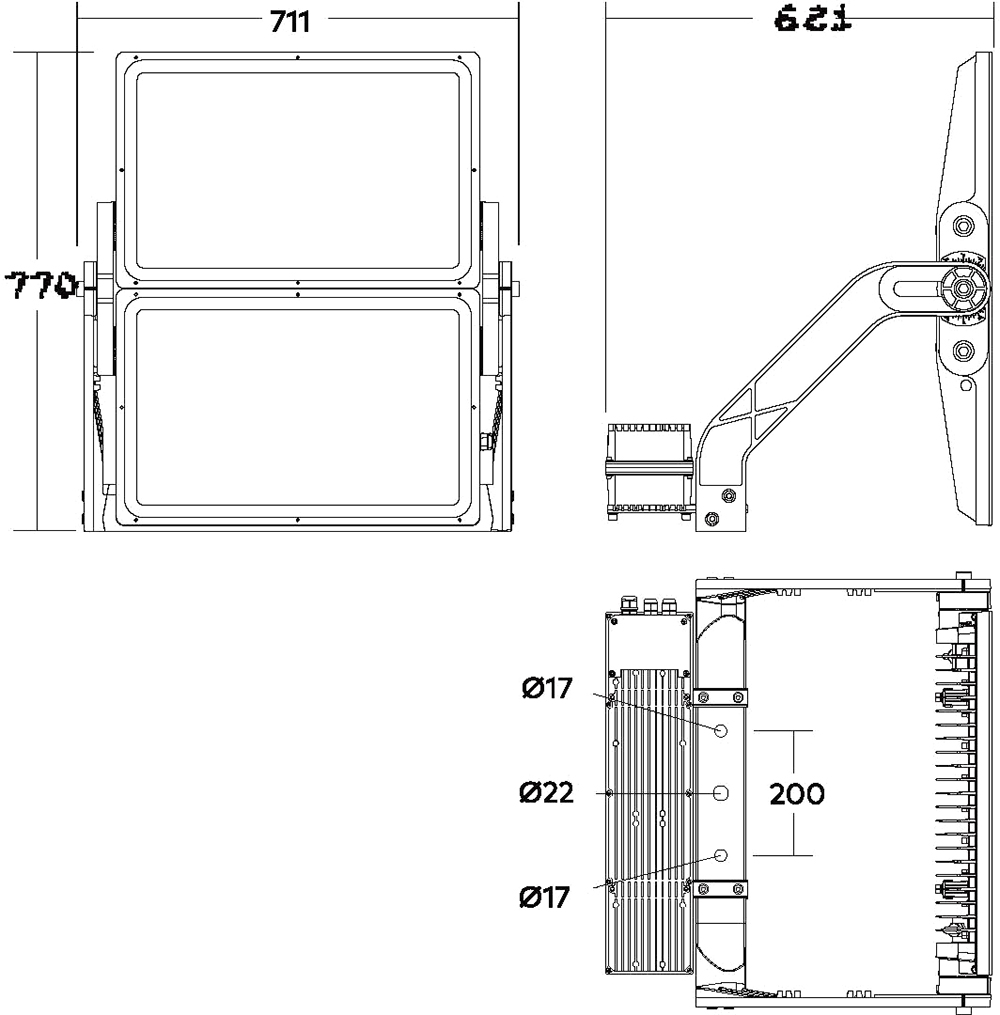

Product Dimensions(mm)

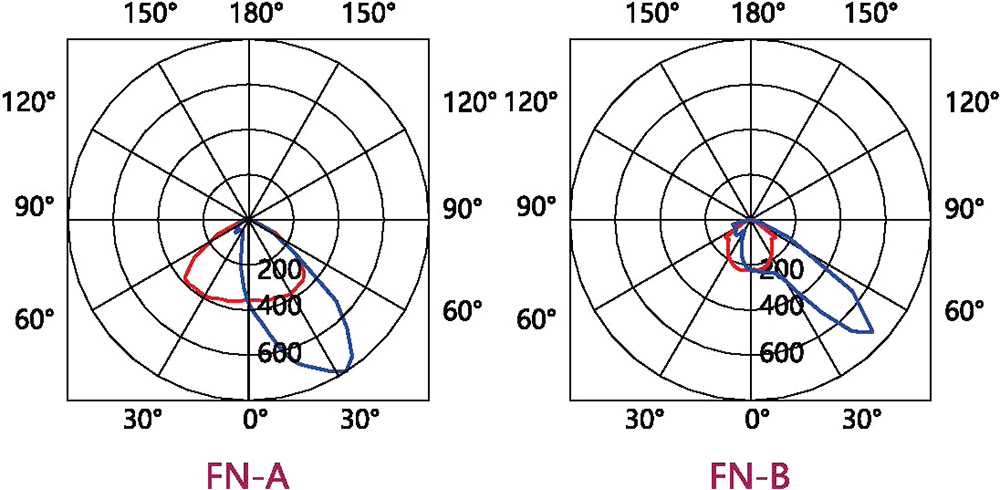

Polar Diagram

Liaoyuan Group is leading NTG-LED-1000 company and NTG-LED-1000 suppliers in China. Liaoyuan has been certificated of ISO9001 QMS, ISO 14001 EMS and OHSMS, and Liaoyuan also passed a series of authoritative certification including GS, CE, ENEC, UL. You can wholesale NTG-LED-1000 easily from us.
